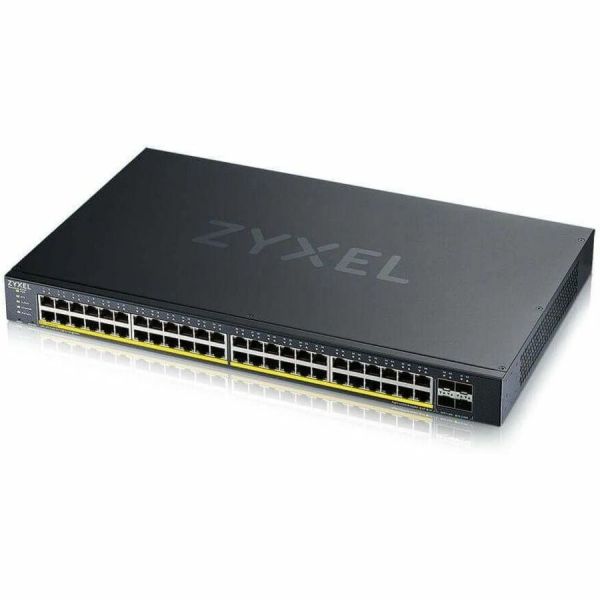

ZYXEL XGS1935-52HP Ethernet Switch

Marketing Information

Benefits

The Zyxel XGS1935 Series is a family of Lite-L3 Smart Managed Switch that consists of four models, including 28- and 52-port, PoE and non-PoE options. The four models all come with four addition 10GbE fiber connectivity cater to your business's increasing need for high network speeds. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.

Flexible 10G support - upgrade wired network at a reasonable price

As SMBs generate more data from daily office applications, Gigabit to the desktop raises the importance of 10GbE connectivity to the core that ensures network efficien...cy for continuous business productivity. With Gigabit connectivity plus four 10GbE uplinks, the XGS1935 Series is an ideal option for those who need basic functions, easier management and a more reasonable price to upgrade their networks.

Powering more devices affordably

The PoE models XGS1935-28HP/52HP support IEEE 802.3at PoE+ standards to offer 30-watt per port and a 375-watt power budget to meet the needs from power-hungry devices. The default consumption mode allows delivery of only the actual power required by devices connected to the switch for better business ROI. The user-friendly PoE consumption indicator located on the front panel and Web GUI provide real-time power utilization.

NebulaFlex simply manage it your way!

The XGS1935 Series supports NebulaFlex technology which provides extended flexibility for users to easily switch network management modes between standalone and our license-free Nebula cloud management platform. Nebula control center provides single pane of glass for Zyxel products; the local web GUI accesses the full feature set and all configuration options of your switch from the very first release.

The Nebula ecosystem

It's easy to set up the Switch and other network devices to Nebula through the Web Interface and mobile APP with their visual step-by-step guide. SB/SMB users can take advantage of Nebula to centrally manage and access realtime network information to have effortless control over the XGS1935 Smart Managed switches, as well as access points, security firewall, and 5G/LTE mobile routers anywhere, anytime - bringing you an easy and unified network experience without the cost for additional software or hardware controller.

Smart managed switch design inside and out

Designed with the concept of Lite-L3 Smart Managed Switch, you can use the user-friendly local web management for more in-depth configuration tasks such as enhanced QoS, Link Aggregation, IPv6, and IPv4/ IPv6 Layer 3 static routing without learning any complex command line interface (CLI). Local web management is included in the purchase price of your switch.

Built with nature in mind

The XGS1935 series is built with a more compact chassis, reducing packaging by up to 36% and weight by up to 22% compared to the previous XGS1930 series. These efforts have resulted in a 48% increase in units per pallet and a reduced carbon footprint.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XGS1935-52HP-GB0101F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: XGS1935
Product Model: XGS1935-52HP
Product Name: XGS1935-52HP Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features: Energy Efficient
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 48 x 100/1000BASE-T Gigbit Ethernet PoE+ RJ-45 Network Port
• 4 x 10 Gigbit Ethernet SFP+ Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 100/1000Base-T
• 10GBase-X

Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3ae
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3az
• IEEE 802.3x
• IEEE 802.3ad
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1p
• IEEE 802.1x
• IEEE 802.1Q
• IEEE 802.1ab

Management & Protocols
Manageable: Yes
Reliability
MTBF: 562941 Hour
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 375 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source:

• Power Supply
• AC
• PoE+
• PoE

Power Consumption: 470.10 W
Physical Characteristics
Form Factor:

• Compact
• Rack-mountable

Height: 42.9 mm
Width: 439.9 mm
Depth: 270 mm
Weight (Approximate): 4.10 kg
Miscellaneous
Package Contents:

• XGS1935-52HP Ethernet Switch
• Power cord
• Rack mounting kit

Application/Usage:

• Business
• Office
• Network
• Wireless Access Point
• Campus
• Hotel
• Branch Office
• Retail
• Store

Certifications & Standards:

Safety

• LVD
• BSMI

EMC

• FCC Part 15 (Class A)
• CE (Class A)
• BSMI EMC

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
