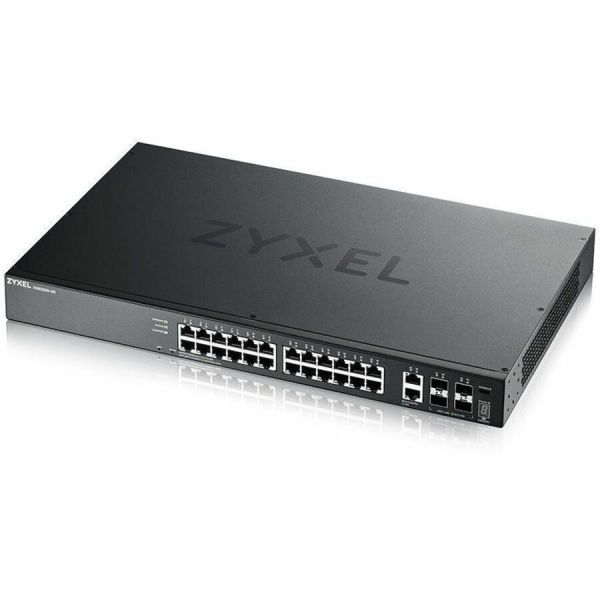

ZYXEL 24-port GbE L3 Access Switch with 6 10G Uplink

Marketing Information

XGS2220 Series

24/48-port GbE L3 Access Switch with 6 10G Uplink

The XGS2220 Series is a family of Layer 3 access Switch that consists of six models, including PoE, Non-PoE and fiber options. In addition to four 10G SFP+ uplink, all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-30 and XGS2220-54 provide 24 or 48 Gigabit desktop ports for every day network access. PoE models XGS2220-30HP, XGS2220-54HP and XGS2220-54FP provide additional power over Ethernet capability and ready for WiFi 6/6E connectivity. The fiber option XGS2220-30F provides 24 SFP port, all serving the purpose to achieve business connectivity based on the fle...xibility of variety option of media interfaces and make itself an ideal choice for increasing business productivity. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation. |

Benefits

Sufficient and flexible 10G support ideal for converged networking applications

The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers, network storages, or other high-speed network devices with either 10G copper or fiber connection. In addition, the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.

Dedicated networked AV mode

The standard switch interface includes an abundance of generic networking features to address a wide variety of applications, making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure, followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompanied with condensed function menu helps you manage and monitor the system with ease.

NebulaFlex Pro simply manage it your way!

The NebulaFlex Pro provides extended flexibility, especially for those who hesitate to step up for cloud networking. You can switch easily between Cloud Managed or Standalone Management. Included with a 1-Year Pro Pack License Bundled, the NebulaFlex Pro even allows you to change your mind at any time without additional cost while protecting previous investments on wired technology. You can have the privilege to use advanced features with professional pack for one year upon registration on Nebula; these features include advanced IGMP technology, comprehensive IPTV reports that provide insights to channel usage information, network analytics alert to optimize network performance along with more upcoming new features on NCC and its app.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XGS2220-30-GB0101F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: XGS2220
Product Model: XGS2220-30
Product Name: 24-port GbE L3 Access Switch with 6 10G Uplink
Product Type: Ethernet Switch
Technical Information
Features:

• Surge Protection
• Support Dual Image
• DHCP Snooping
• Broadcast Storm Control
• DHCP Relay
• Remote Monitoring (RMON)
• Remote/Cloud Management

Interfaces/Ports
Total Number of Network Ports: 26
Uplink Port: Yes
Stack Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet RJ-45 Network Port
• 2 x 1/2.5/5/10 Gigabit Ethernet RJ-45 Network Port
• 4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 1000Base-T
• 2.5GBase-T
• 5GBase-T
• 10GBase-T
• 1000Base-X
• 10GBase-X

Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.3z
• IEEE 802.3ab
• IEEE 802.3an
• IEEE 802.3ae
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3bt
• IEEE 802.3az
• IEEE 802.3x
• IEEE 802.1ab
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.1x
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.3ad
• IEEE 802.1ad

Management & Protocols
Manageable: Yes
Reliability
MTBF: 520185 Hour
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source:

• Power Supply
• AC

Power Consumption: 37.62 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 43.9 mm
Width: 440.9 mm
Depth: 270 mm
Weight (Approximate): 3.40 kg
Miscellaneous
Package Contents:

• 24-port GbE L3 Access Switch with 6 10G Uplink
• Power cord
• Rack mounting kit

Application/Usage:

• Network
• Business
• Hotel
• Education
• Surveillance
• Office
• Store

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
