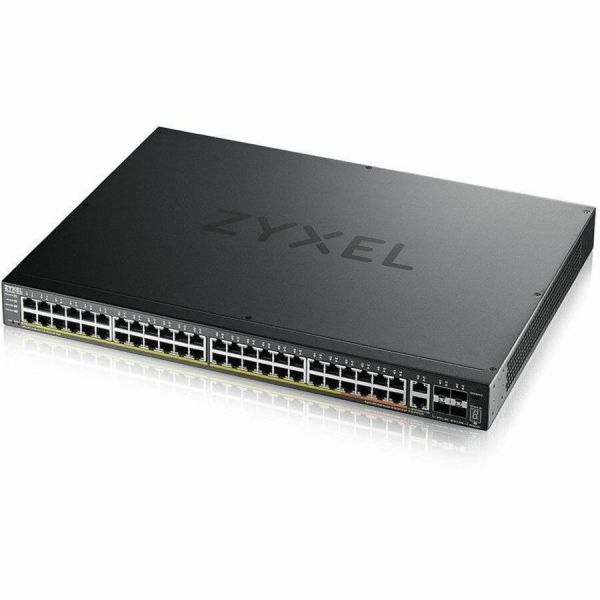

ZYXEL 48-port GbE L3 Access PoE+ Switch with 6 10G Uplink (600 W)
£1,050.79
Limited Stock: Only 0 available
Only 1 left
ZYXEL 48-port GbE L3 Access PoE+ Switch with 6 10G Uplink (600 W)
ZYXEL 48-port GbE L3 Access PoE+ Switch with 6 10G Uplink (600 W) is available to buy in increments of 1
Categories: Switches & Bridges, Default Category
| Layer Supported | 3 |
|---|---|
| Power Consumption | 754.11 W |
| Manageable | Yes |
| Product Type | Layer 3 Switch |
| Power Source | Power Supply |
| Form Factor | Rack-mountable |
| Brand Name | ZYXEL |
| Expansion Slot Type | SFP+ |
| Ethernet Technology | Gigabit Ethernet/10 Gigabit Ethernet |
| Product Family | XGS2220 |
| Media Type Supported | Optical Fiber/Twisted Pair |
| Total Number of Network Ports | 50 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4.0 |
| Ethics - Environment | No Effort |
| Ethics - Animal | High Effort |
| Ethics - Human | High Effort |
| Ethics - Integrity | Moderate Effort |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Animal - Key Point | None at present |
| Ethics - Human - Key Point | Worst rating for conflict minerals policy |
| Ethics - Environment - Key Point | Worst rating for coflict minerals |
| Ethics - Integrity - Key Point | Worst rating for likely tax avoidance |
| Ethics - Durability - Key Point | Zyxel's key product durability fact coming soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
The XGS2220 Series is a family of Layer 3 access Switch that consists of six models, including PoE, Non-PoE and fiber options. In addition to four 10G SFP+ uplink, all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-30 and XGS2220-54 provide 24 or 48 Gigabit desktop ports for every day network access. PoE models XGS2220-30HP, XGS2220-54HP and XGS2220-54FP provide additional power over Ethernet capability and ready for WiFi 6/6E connectivity. The fiber option XGS2220-30F provides 24 SFP port, all serving the purpose to achieve business connectivity based on the flexibility of variety option of media interfaces and make itself an ideal choice for increasing b...usiness productivity. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers, network storages, or other high-speed network devices with either 10G copper or fiber connection. In addition, the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications, making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure, followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompanied with condensed function menu helps you manage and monitor the system with ease.
Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XGS222054HPGB0101F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: XGS2220
Product Model: XGS2220-54HP
Product Name: 48-port GbE L3 Access PoE+ Switch with 6 10G Uplink (600 W)
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 50
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:
Media & Performance
Media Type Supported:
Ethernet Technology:
Network Technology:
I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:
Management & Protocols
Manageable: Yes
Reliability
MTBF: 214388 Hour
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 600 W
Input Voltage:
Frequency:
Power Source: Power Supply
Power Consumption: 754.11 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 44 mm
Width: 441 mm
Depth: 330 mm
Weight (Approximate): 5 kg
Miscellaneous
Package Contents:
Application/Usage:
Warranty
Limited Warranty: Lifetime
The XGS2220 Series is a family of Layer 3 access Switch that consists of six models, including PoE, Non-PoE and fiber options. In addition to four 10G SFP+ uplink, all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-30 and XGS2220-54 provide 24 or 48 Gigabit desktop ports for every day network access. PoE models XGS2220-30HP, XGS2220-54HP and XGS2220-54FP provide additional power over Ethernet capability and ready for WiFi 6/6E connectivity. The fiber option XGS2220-30F provides 24 SFP port, all serving the purpose to achieve business connectivity based on the flexibility of variety option of media interfaces and make itself an ideal choice for increasing b...usiness productivity. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers, network storages, or other high-speed network devices with either 10G copper or fiber connection. In addition, the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications, making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure, followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompanied with condensed function menu helps you manage and monitor the system with ease.
Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XGS222054HPGB0101F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: XGS2220
Product Model: XGS2220-54HP
Product Name: 48-port GbE L3 Access PoE+ Switch with 6 10G Uplink (600 W)
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 50
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:
- 40 x Gigabit Ethernet PoE+
- 2 x 10 Gigabit Ethernet PoE++
- 4 x 10 Gigabit Ethernet Expansion Slot
- 8 x Gigabit Ethernet PoE++
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 100/1000Base-T
- 10GBase-X
- 10GBase-T
I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Networking Standards:
- IEEE 802.11ac
- IEEE 802.11ax
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.3ae
- IEEE 802.3az
- IEEE 802.3x
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1ad
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
Management & Protocols
Manageable: Yes
Reliability
MTBF: 214388 Hour
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 600 W
Input Voltage:
- 120 V AC
- 230 V AC
Frequency:
- 50 Hz
- 60 Hz
Power Source: Power Supply
Power Consumption: 754.11 W
Physical Characteristics
Form Factor: Rack-mountable
Height: 44 mm
Width: 441 mm
Depth: 330 mm
Weight (Approximate): 5 kg
Miscellaneous
Package Contents:
- 48-port GbE L3 Access PoE+ Switch with 6 10G Uplink (600 W)
- Power Cord
- Rack Mounting Kit
Application/Usage:
- Network
- Business
- Branch Office
Warranty
Limited Warranty: Lifetime
