1037652369

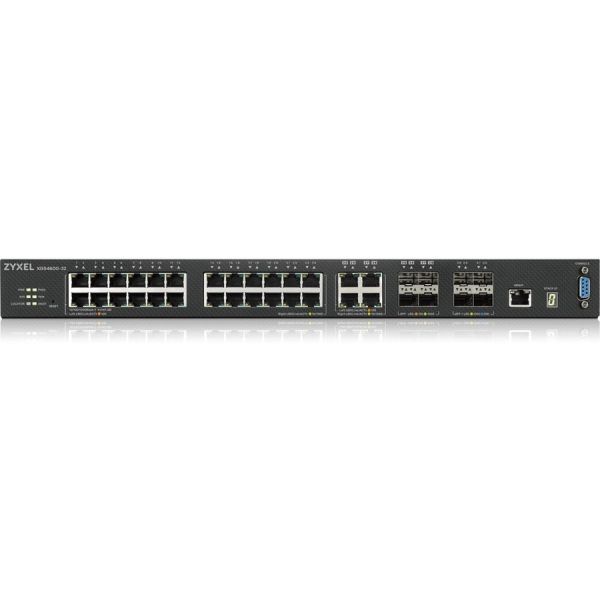

ZYXEL 28-Port GbE L3 Managed Switch with 4 SFP+ Uplink
£1,641.05
Limited Stock: Only 0 available
Only 1 left
ZYXEL 28-Port GbE L3 Managed Switch with 4 SFP+ Uplink
ZYXEL 28-Port GbE L3 Managed Switch with 4 SFP+ Uplink is available to buy in increments of 1
Categories: Switches & Bridges, Default Category
| Layer Supported | 3 |
|---|---|
| Manageable | Yes |
| Stack Port | Yes |
| Redundant Power Supply Supported | No |
| Product Type | Layer 3 Switch |
| Power Source | Power Supply |
| Form Factor | Rack-mountable |
| Brand Name | ZYXEL |
| Expansion Slot Type | SFP/SFP+ |
| Ethernet Technology | 10 Gigabit Ethernet/Gigabit Ethernet |
| Product Family | XGS4600 |
| Media Type Supported | Optical Fiber/Twisted Pair |
| Total Number of Network Ports | 28 |
| Total Number of Expansion Slots | 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Ethics - Environment | No Effort |
| Ethics - Animal | High Effort |
| Ethics - Human | High Effort |
| Ethics - Integrity | Moderate Effort |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Animal - Key Point | None at present |
| Ethics - Human - Key Point | Worst rating for conflict minerals policy |
| Ethics - Environment - Key Point | Worst rating for coflict minerals |
| Ethics - Integrity - Key Point | Worst rating for likely tax avoidance |
| Ethics - Durability - Key Point | Zyxel's key product durability fact coming soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
Bandwidth-intensive applications such as multimedia streaming, VoIP and video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded and that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues and education institutions. Zyxel's brand new Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under... the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks.
Benefits
High availability
To implement fault-tolerant networks, the Zyxel XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. Four units or 112 Gigabit ports can be configured as a stack using optional directattach cables or transceivers to provide high bandwidth on the XGS4600
Series for more flexible management. The stacking topology under the ring architecture provides high redundancy in case one of the stacking links fail. The system can quickly recover through another stacking connection. The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Advanced L3 features
Hierarchical business networks become more complex because of the increased communication among subnets. The XGS4600 Series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. In addition, the XGS4600 Series comes with full Layer-2 switching and Layer-3 routing capabilities if the system is working under the stacking mode. The stackable structure greatly enlarges network coverage as well as network resiliency that most enterprise networks require.
Flexible management and future-proof networks
The XGS4600 Series can be managed via CLI which is consistent with Zyxel managed switches, while the intuitive Web-based GUI helps skilled network administrators to quickly become more productive. As the IP address scheme evolves to accommodate a growing number of network
devices, the Zyxel XGS4600 Series assures businesses a smooth migration path from IPv4-based networks to a full IPv6 infrastructure for protection to the investments in future network upgrades.
Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XGS460032ZZ0102F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: XGS4600
Product Model: XGS4600-32
Product Name: 28-Port GbE L3 Managed Switch with 4 SFP+ Uplink
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 28
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
Media & Performance
Media Type Supported:
Ethernet Technology:
Network Technology:
I/O Expansions
Total Number of Expansion Slots: 8.0
Expansion Slot Type:
Shared SFP Slot: Yes
Number of SFP Slots: 4
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 44 mm
Width: 441 mm
Depth: 270 mm
Weight (Approximate): 3.96 kg
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Bandwidth-intensive applications such as multimedia streaming, VoIP and video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded and that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues and education institutions. Zyxel's brand new Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under... the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks.
Benefits
High availability
To implement fault-tolerant networks, the Zyxel XGS4600 Series allows creating a physical stack through one or two 10-Gigabit SFP+ slots. Four units or 112 Gigabit ports can be configured as a stack using optional directattach cables or transceivers to provide high bandwidth on the XGS4600
Series for more flexible management. The stacking topology under the ring architecture provides high redundancy in case one of the stacking links fail. The system can quickly recover through another stacking connection. The XGS4600 Series is designed to support active-standby power redundancy to trigger backup power supply to take over in case the main power supply fails.
Advanced L3 features
Hierarchical business networks become more complex because of the increased communication among subnets. The XGS4600 Series features dynamic routing to simplify cross-subnet communications for businesses such as hospitality venues and education institutions that operate complex networks. In addition, the XGS4600 Series comes with full Layer-2 switching and Layer-3 routing capabilities if the system is working under the stacking mode. The stackable structure greatly enlarges network coverage as well as network resiliency that most enterprise networks require.
Flexible management and future-proof networks
The XGS4600 Series can be managed via CLI which is consistent with Zyxel managed switches, while the intuitive Web-based GUI helps skilled network administrators to quickly become more productive. As the IP address scheme evolves to accommodate a growing number of network
devices, the Zyxel XGS4600 Series assures businesses a smooth migration path from IPv4-based networks to a full IPv6 infrastructure for protection to the investments in future network upgrades.
Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XGS460032ZZ0102F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Series: XGS4600
Product Model: XGS4600-32
Product Name: 28-Port GbE L3 Managed Switch with 4 SFP+ Uplink
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 28
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 28 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Uplink
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- 10 Gigabit Ethernet
- Gigabit Ethernet
Network Technology:
- 10GBase-X
- 10/100/1000Base-TX
- 1000Base-X
I/O Expansions
Total Number of Expansion Slots: 8.0
Expansion Slot Type:
- SFP
- SFP+
Shared SFP Slot: Yes
Number of SFP Slots: 4
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 44 mm
Width: 441 mm
Depth: 270 mm
Weight (Approximate): 3.96 kg
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
