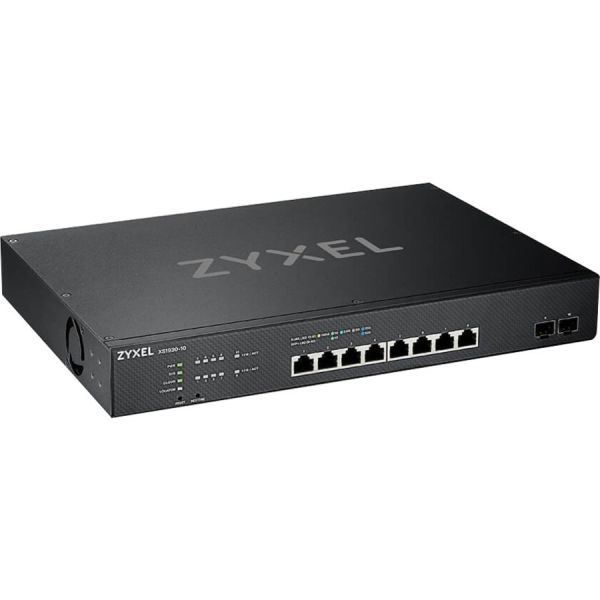

ZYXEL 8-port Multi-Gigabit Smart Managed Switch with 2 SFP+ Uplink

Marketing Information

Light Up the Speed

Zyxel's XS1930 Series Multi-Gigabit Smart Managed Switch

Breakthrough 1 Gbps

The new XS1930 Series switch supports IEEE 802.3bz standard for delivering Multi-Gigabit technology on existing wiring infrastructure which offering up to 10 times more bandwidth capacity without expensive and disruptive cable upgrades. In addition, it is designed with industry-first 5-color LED to instantly display the operating port speed.

New era of connectivity

Each of the Multi-Gigabit ports on XS1930 Series Switch support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. For 2.5G/5G capable devices such as WiFi 6 (11ax) AP, servers and workstations now are able... to operate at the maximum speed without forcing the connection downgrades to 1G.

True backbone of WiFi 6

WiFi 6 needs higher speed LAN (>1Gbps) and power (PoE++). The PoE model XS1930-12HP supports the latest PoE standard IEEE 802.3bt (PoE++) providing port power up to 60W for WiFi6 AP, as well as backwarding compatibility with existing PoE/PoE+ devices. With a large power budget of up to 375W, XS1930-12HP gives enough headroom for connections up to 8 WiFi 6 (11ax) APs.

Experience The Near Silent Operation

The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment.

Manage it your way!

The XS1930 Series introduces Zyxel NebulaFlex, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.

Smart managed switch inside and out

The XS1930 Series aims to widen user experience with its unique One-touch 'Restore' button as well as fully-loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 Layer 3 static route, can all be configured via its local user-friendly web interface efficiently.

Designed for the long haul

Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS1930 Series for your networks.

Specifications
Manufacturer: ZYXEL Communications Corp.
Manufacturer Part Number: XS193010ZZ0101F
Manufacturer Website Address: http://www.zyxel.co.uk
Brand Name: ZYXEL
Product Model: XS1930-10
Product Name: 8-port Multi-Gigabit Smart Managed Switch with 2 SFP+ Uplink
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

• 2 x 10 Gigabit Ethernet Expansion Slot
• 8 x 10 Gigabit Ethernet Network

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: 10 Gigabit Ethernet
Network Technology:

• 10GBase-X
• 10GBase-T

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Form Factor: Rack-mountable
Height: 44 mm
Width: 330 mm
Depth: 230 mm
Weight (Approximate): 2.40 kg
Miscellaneous
TAA Compliant: No
